H-312 control unit
| Datasheet: | Download |
| CNBOP: | Download |
The H-312 is an integrated Control Unit that enables monitoring and management of all HYBRYD lighting systems.
This unit can integrate various types of systems in one place – centrally powered, individually powered, dynamic, wireless, and wired systems.
FEATURES
• Two versions available – for wall mounting and for DIN rail mounting
• Monitoring of CT luminaires and external systems HVCBS and LVDBS
• Visualisation of installations and localisation of appliances
• Control unit operation via a large touchscreen or remotely via a web browser
• Remote access from mobile devices
• Full functionality available locally and remotely
• Support for all HYRBYD communication technologies, including CT-WIRELESS, CT-BUS and CT-LOOP
• Support for dual-band CT-Wireless radio communication
• Proprietary communication protocol between devices based on hardware addresses assigned during production
• Extensive integration options with fire alarm systems and BMS systems
• Support for a dynamic system that indicates the evacuation direction depending on the location of the threat
• Night lighting control
• Remote manufacturer support
• Scheduled performance tests
• Automatic email reporting
• Continuous monitoring of communication, battery, and power status
TECHNICAL DATA
| Supply voltage | 100-240V AC 50/60Hz | |
| Power consumption | WM | 25W |
| Power consumption | DIN | 10W |
| Protection class | II | |
| Ingress protection | IP3X | |
| Battery | Li-Ion | |
| Operation time during a power outage | >1h | |
| Interfaces | 2x Ethernet, 1x USB 2.0, 1x RS485 | |
| Screen | WM | 10.1” touch, capacitive |
| Screen | DIN | none |
| Output lines | 6x CT-BUS, can be paired CT-LOOP | |
| Weight | WM | 3.5kg |
| Weight | DIN | 1kg |
| Ambient temperature | +5ºC – +40ºC | |
| Montage | WM | Wall |
| Montage | DIN | DIN rail |
| Indicator Lights | POWER, STATUS, DYN, 2x LAN, 7x COMMUNICATION |
MATERIAL
Housing material – PC/ABS
Housing colour – RAL 7035, RAL 7024
APPLICATION
Integration and central monitoring of HYBRYD systems.
CONSTRUCTION
The control unit is available in several variants and two different forms:
• H-312 XXXX - XX - XX - WM
form with touch screen, LED indicators, USB connection and wall mounting.
• H-312 XXXX - XX - XX - DIN
form without a screen, with LED indicators and USB connector and mounting in accordance with the EN 60715 standard on a DIN rail.
Both control unit forms utilize high-quality ABS/PC housings that meet the same standards. They feature the same connector set, the same LED indicators, and the same basic functionality.
The DIN-mounted control unit does not have an LCD screen and requires a separate PC running the Centrala PC software, whereas the WM version features a built-in PC running the Centrala PC application. In both cases, the control unit’s interaction with the SSP systems and the control of the dynamic system is entirely independent of the dedicated application and is handled by an internal microcontroller.
The control unit can operate independently and autonomously in both forms, whilst the primary purpose of the DIN-rail version is to integrate with and extend the functionality of the WM control unit. This is particularly true in the case of distributed systems, such as building complexes, where one building houses a WM control unit whilst the other buildings are managed by DIN control units. The WM control unit is connected to the DIN control unit via the COM LAN1-2 (TCP/IP) or COM SERIAL (RS485) interface.

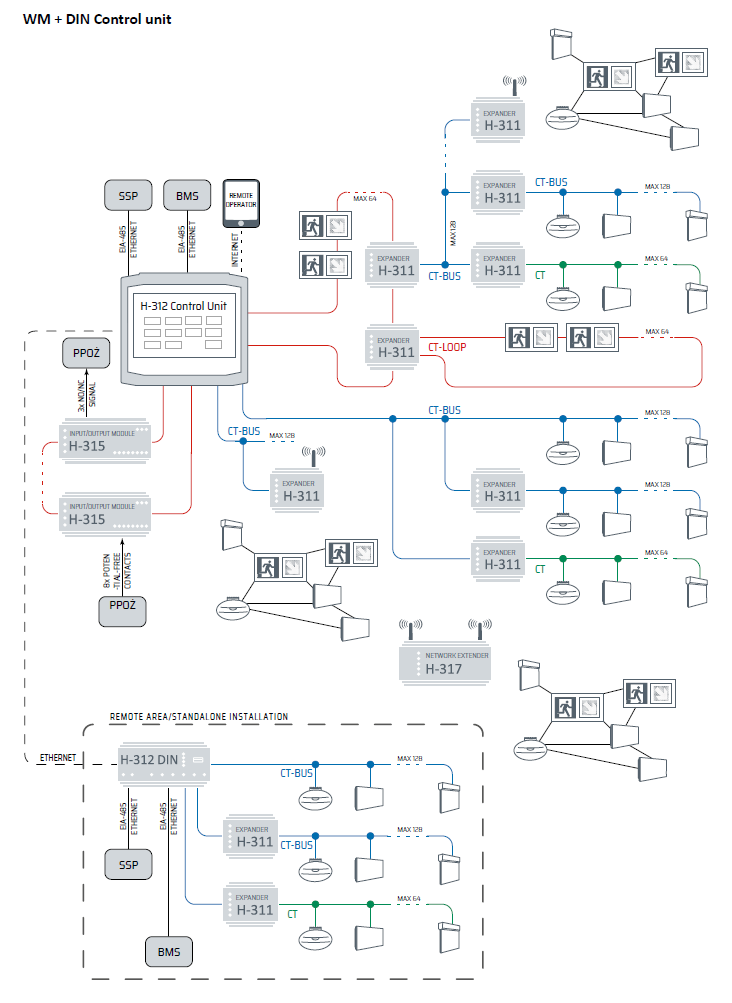

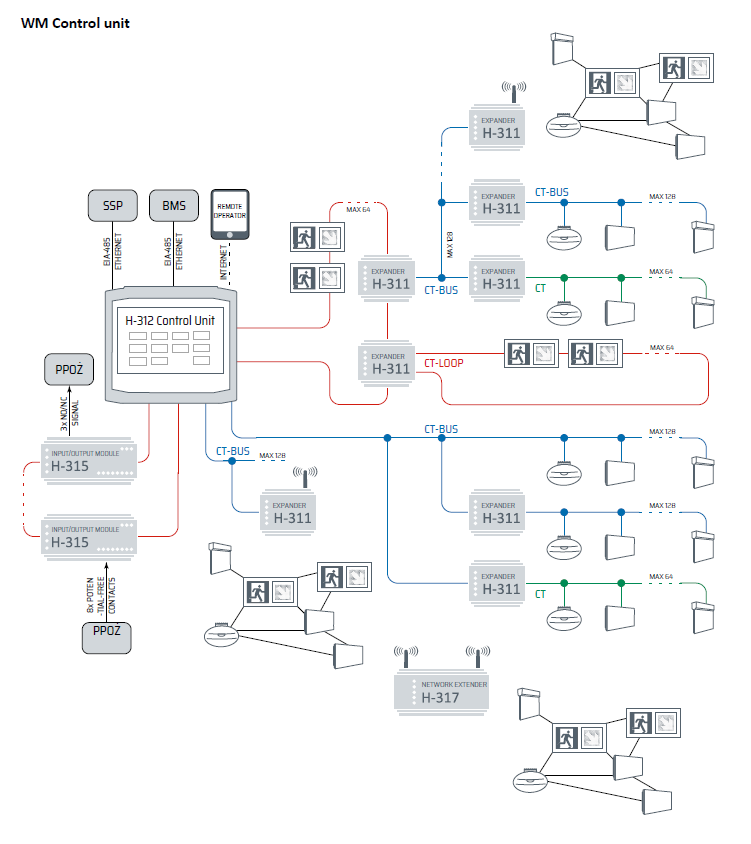

NETWORK TOPOLOGY

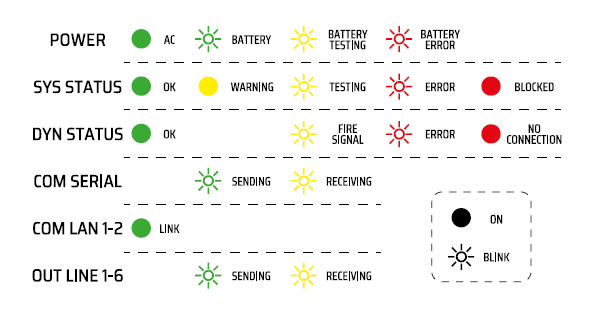

INDICATOR LIGHTS
All controls are implemented using RGB diodes.:
POWER – network and battery status information
SYS STATUS – system health and test status
DYN STATUS – state of the dynamic system
COM SERIAL – serial communication with an external BMS system
COM LAN 1-2 – LAN communication status
OUT LINE 1-6 – communication with slave devices
