Legend

Available systems:

AT - AUTOTEST, automatic test execution
TS - TESTSYSTEM, automatic test execution and remote control
ST - STANDARD, manual testing
CT - CENTRALTEST, central monitoring system
CB - CENTRAL BATTERY

Tests

Test A - monthly executed functionality test
Test B - annually executed emergency supply test (emergency work time measurement test)

Work modes:

Basic work - 230V power supply
Emergency work - accumulator power supply
Work modes switching: basic/emergency mode is switched automatically
J - maintained, works in basic and emergency mode
C - non-maintained, works only in emergency mode
MS - mixed, two lamps work in basic mode, one lamp works in emergency mode
N - night, only for Centraltest. Works like in maintained version. Basic work time can be programmed with the use of the central unit
S - special

Other functions

Blockade - emergency work blockade activated or deactivated by terminals positioning
Sleep mode - emergency work blockade for the time of power supply failure. This blockade is released automatically once the power supply is provided

Mounting

W - mounted to wall
C - mounted to ceiling

Other abbreviations

DW - two-sided

H-290 CT LED Feeder


SYSTEM VERSION:

CENTRALTEST

LIGHT SOURCE:

LED

APPLICATION:

The feeder is designed for supplying (in emergency work mode)15V LED luminaires with total light source power up to 15W. H-290 works with central monitoring main unit.

TECHNICAL DATA:

Power supply z sieci: 230V AC 50Hz
Power consumption: < 10VA
Protection class: I
Radio noise: Level N
Protection degree: IP40
Luminaire efficiency: 100%
Light source power: max 15W
Accumulator type: Pb AGM tight
Accumulator voltage: 12V
Accumulator capacity: 7,2Ah
Accumulator charging time: 24h
Emergency work time: > 3h
Temperature ta:+5°C ÷ +35°C
temperatura tc: +40°C
Dimensions (LxDxH): 200 x 100 x 260 mm
Waga: 4100g

INDICATION:

The feeder condition is by LED.
There is no LED indication during emergency mode.

Green:
- accumulator condition indication
-on: accumulator charged
-off: lack of accumulator
-flashing 2HZ: accumulator charging

Red:
module condition indication
-on: module failure
-off: lack of failures
-flashing 2Hz: test A/B active
-fast flashing: blockade active

ACCUMULATOR:

Nickel-cadmium accumulators are used to supply emergency modules and they are designed to be operative in higher temperatures. Ending socked allows to connect an accumulator with a module. Standard cable length – 200mm.

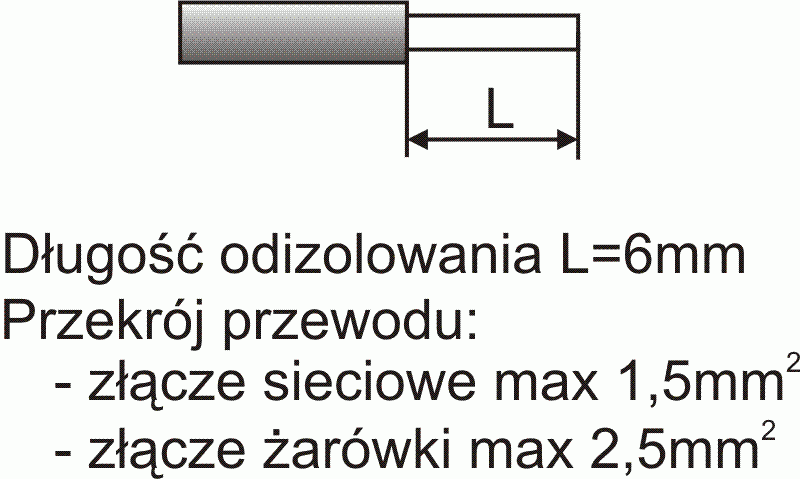

CONNECTORS:

ORDERING:

While ordering, the following shall be given:
- module code or name, for example: 9277 or H-290 CT LED
- modules quantity
- accumulator code Pb-12V-7Ah

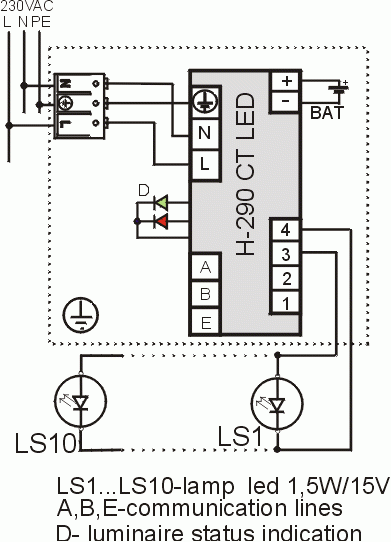

CIRCUIT DIAGRAMS:
