Legend

Available systems:

AT - AUTOTEST, automatic test execution
TS - TESTSYSTEM, automatic test execution and remote control
ST - STANDARD, manual testing
CT - CENTRALTEST, central monitoring system
CB - CENTRAL BATTERY

Tests

Test A - monthly executed functionality test
Test B - annually executed emergency supply test (emergency work time measurement test)

Work modes:

Basic work - 230V power supply
Emergency work - accumulator power supply
Work modes switching: basic/emergency mode is switched automatically
J - maintained, works in basic and emergency mode
C - non-maintained, works only in emergency mode
MS - mixed, two lamps work in basic mode, one lamp works in emergency mode
N - night, only for Centraltest. Works like in maintained version. Basic work time can be programmed with the use of the central unit
S - special

Other functions

Blockade - emergency work blockade activated or deactivated by terminals positioning
Sleep mode - emergency work blockade for the time of power supply failure. This blockade is released automatically once the power supply is provided

Mounting

W - mounted to wall
C - mounted to ceiling

Other abbreviations

DW - two-sided

H-212


SYSTEM VERSION:

STANDARD

LIGHT SOURCE:

TC-SE 5-11W TC-DE 10-18W TL-D 18W PL-Q 28W

TECHNICAL DATA:

Power supply: 230V AC 50Hz
Power consumption: < 2,5 VA
Protection class: I
Radio noise: Level N
Work frequency: 25... 30kHz
Protection degree: IP20
Lamp power and type: TC-SE 5W÷11W
TC-DE 10W÷18W
TL-D 18W
PL-Q 28W
Number of fluorescent lamps: 1 or 2
Accumulator type: NiCd HT
Accumulator voltage: 3,6V
Accumulator capacity: 1,5Ah, 2,5Ah or 4,0Ah
Accumulator charging time: 24h
Emergency work time: 1h, 2h or 3h
Accumulator lifespan: 4 years (suggested replacement after 4 years)
Temperature ta: +5ºC ÷ +55ºC
Temperature tc: +70ºC
Dimensions (LxDxH): 240 x 38 x 35 mm
Weight (without accumulator): 350g

VERSIONS:

Module nameWork modeTimeAccumulatorWeightCode
H-212 D18 3MMieszana3h3,6V/4,0Ah350g4012
H-212 D18 2MMieszana2h3,6V/2,5Ah350g4029
H-212 D18 1MMieszana1h3,6V/1,5Ah350g4036
H-212 C10 3MMieszana3h3,6V/4,0Ah350g4043
H-212 C10 2MMieszana2h3,6V/2,5Ah350g4050
H-212 C10 1MMieszana1h3,6V/1,5Ah350g4067
H-212 C13 3MMieszana3h3,6V/4,0Ah350g4074
H-212 C13 2MMieszana2h3,6V/2,5Ah350g4081
H-212 C13 1MMieszana1h3,6V/1,5Ah350g4098
H-212 C18 3MMieszana3h3,6V/4,0Ah350g4104
H-212 C18 2MMieszana2h3,6V/2,5Ah350g4111
H-212 C18 1MMieszana1h3,6V/1,5Ah350g4128
H-212 S5 3MMieszana3h3,6V/4,0Ah350g4135
H-212 S5 2MMieszana2h3,6V/2,5Ah350g4142
H-212 S5 1MMieszana1h3,6V/1,5Ah350g4159
H-212 S7 3MMieszana3h3,6V/4,0Ah350g4166
H-212 S7 2MMieszana2h3,6V/2,5Ah350g4173
H-212 S7 1MMieszana1h3,6V/1,5Ah350g4180
H-212 S9 3MMieszana3h3,6V/4,0Ah350g4197
H-212 S9 2MMieszana2h3,6V/2,5Ah350g4203
H-212 S9 1MMieszana1h3,6V/1,5Ah350g4210
H-212 S11 3MMieszana3h3,6V/4,0Ah350g4227
H-212 S11 2MMieszana2h3,6V/2,5Ah350g4234
H-212 S11 1MMieszana1h3,6V/1,5Ah350g4241
H-212 Q28 3JMaintained3h3,6V/4,0Ah350g4258
H-212 Q28 2JMaintained2h3,6V/2,5Ah350g4265
H-212 Q28 1JMaintained1h3,6V/1,5Ah350g4272

ACCUMULATOR:

Nickel-cadmium accumulators are used to supply emergency modules and they are designed to be operative in higher temperatures. Ending socked allows to connect an accumulator with a module. Standard cable length – 200mm.

CONNECTORS:

ORDERING:

While ordering, the following shall be given:
- module code or name, for example: 4128 or H-212 C18 1M
- modules quantity
- accumulator code (package-voltage-capacity-connector), for example PAS-36-15-H

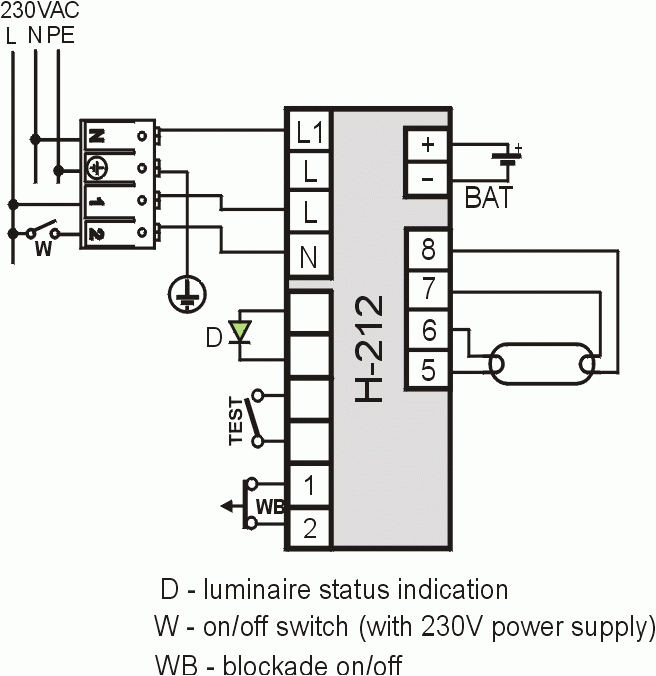

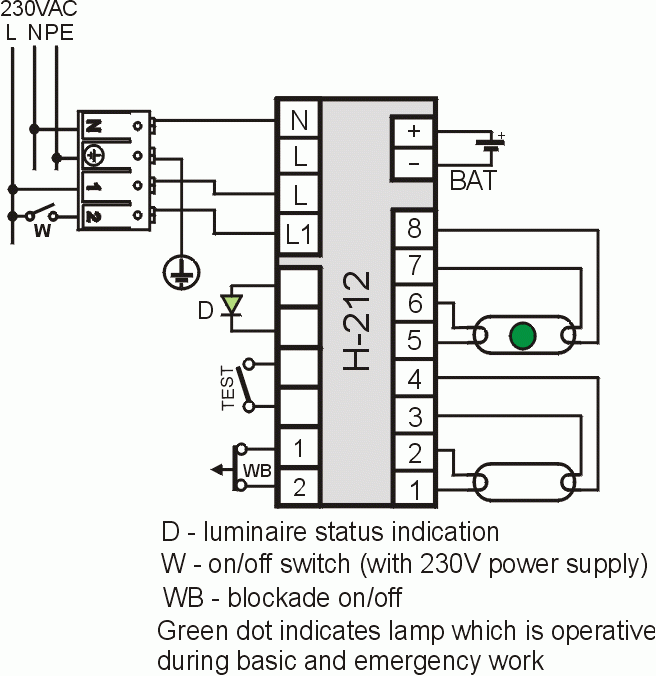

CIRCUIT DIAGRAMS:

DIMENSIONS:
