Legend

Available systems:

AT - AUTOTEST, automatic test execution
TS - TESTSYSTEM, automatic test execution and remote control
ST - STANDARD, manual testing
CT - CENTRALTEST, central monitoring system
CB - CENTRAL BATTERY

Tests

Test A - monthly executed functionality test
Test B - annually executed emergency supply test (emergency work time measurement test)

Work modes:

Basic work - 230V power supply
Emergency work - accumulator power supply
Work modes switching: basic/emergency mode is switched automatically
J - maintained, works in basic and emergency mode
C - non-maintained, works only in emergency mode
MS - mixed, two lamps work in basic mode, one lamp works in emergency mode
N - night, only for Centraltest. Works like in maintained version. Basic work time can be programmed with the use of the central unit
S - special

Other functions

Blockade - emergency work blockade activated or deactivated by terminals positioning
Sleep mode - emergency work blockade for the time of power supply failure. This blockade is released automatically once the power supply is provided

Mounting

W - mounted to wall
C - mounted to ceiling

Other abbreviations

DW - two-sided

H-204 TS

SYSTEM VERSION:

TESTSYSTEM

LIGHT SOURCE:

Other lamp types

TECHNICAL DATA:

Power supply:	230V AC 50Hz
Power consumption:	< 2 VA
Protection class:	I
Radio noise:	Level N
Work frequency:	25... 30kHz
Protection degree:	IP20
Lamp power and type:	According to “Light source-module adaptation” chart
Accumulator type:	NiCd HT
Accumulator voltage:	3,6V or 4,8V
Accumulator capacity:	1,5Ah, 2,5Ah or 4,0Ah
Accumulator charging time:	24h
Emergency work time:	1h, 2h or 3h
Accumulator lifespan akumulatorów:	4 years (suggested replacement after 4 years)
Temperature ta:	+5°C ÷ +55°C
Temperature tc:	+70°C
Dimensions (LxDxH):	240 x 38 x 35 mm
Weight (without accumulator):	400g

STEERING:

Module is equipped with infrared receiver and transmitter which is cooperative with H-101 TS steering unit.

VERSIONS:

Module name	Work mode	Time	Accumulator	Weight	Code
H-204 TS 9/36 3J	Maintained	3h	3,6V/4,0Ah	400g	0632
H-204 TS 9/36 2J	Maintained	2h	3,6V/2,5Ah	400g	0649
H-204 TS 9/36 1J	Maintained	1h	3,6V/1,5Ah	400g	0656
H-204 TS 18/58 3J	Maintained	3h	4,8V/4,0Ah	400g	0663
H-204 TS 18/58 2J	Maintained	2h	4,8V/2,5Ah	400g	0670
H-204 TS 18/58 1J	Maintained	1h	4,8V/1,5Ah	400g	0687

LIGHT SOURCE-MODULE ADAPTATION

Lamp		H-204 TS 9/36	H-204 TS 18/58
TC-SEL	5	+	o
	7	+	o
	9	+	o
	11	+	o
TC-DEL	10	+	o
	13	+	o
	18	+	o
	26	+	o
TC-TEL	13	–	+
	18	–	+
	26	–	+
T5	6	+	o
	8	+	o
	13	+	o
T8	18	+	o
	30	+	o
	36	–	+
	58	–	+
TC-L	18	–	+
	24	–	+
	36	–	+
	40	–	–
	55	–	–
TC-F	18	–	+
	24	–	+
	36	–	+
T5-FH	14	–	+
	21	–	–
	28	–	–
	35	–	–
T5-FQ	24	–	+
	39	–	+
	49	–	–
	54	–	–
	80	–	–

+ Works correctly

– Does not work

o Improved efficiency

ACCUMULATOR:

Nickel-cadmium accumulators are used to supply emergency modules and they are designed to be operative in higher temperatures. Ending socked allows to connect an accumulator with a module. Standard cable length – 200mm.

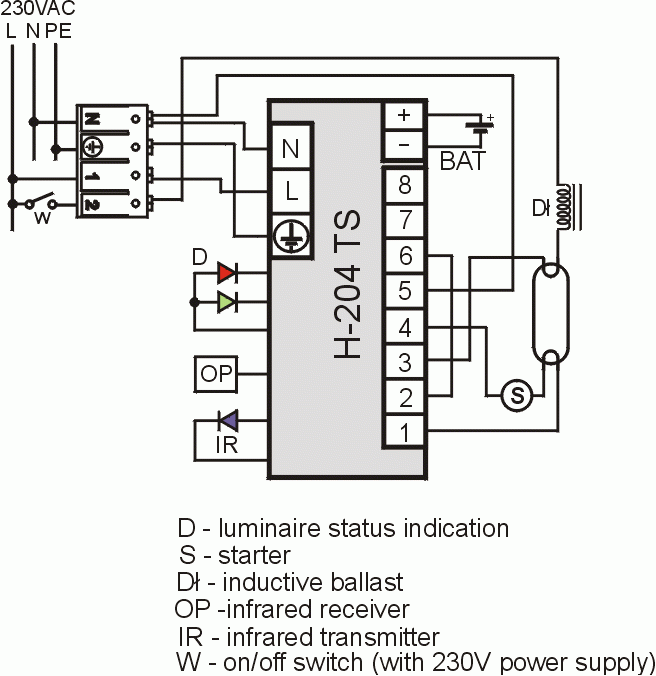

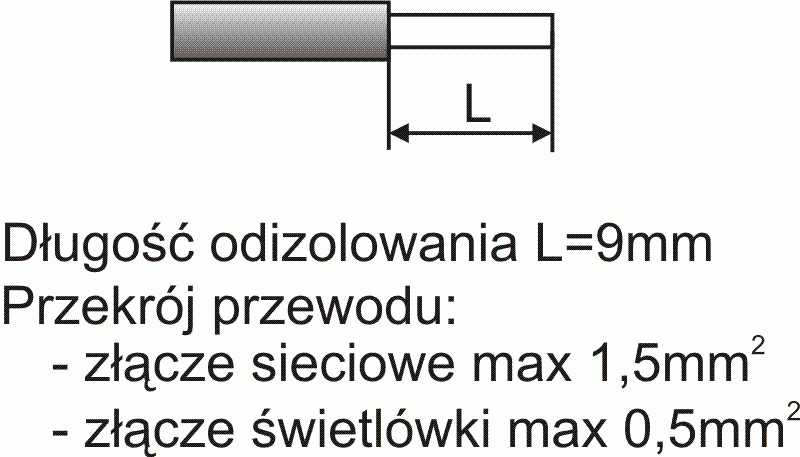

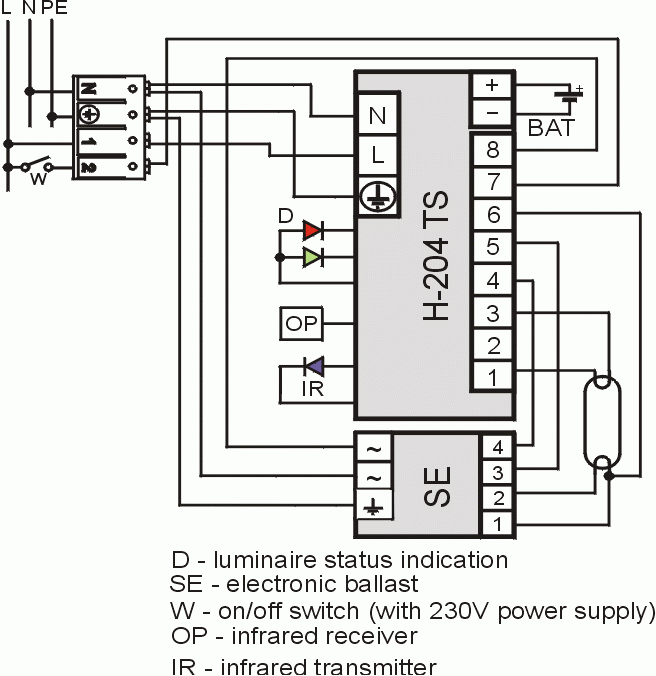

CONNECTORS:

ORDERING:

While ordering, the following shall be given:
- module code or name, for example: 0632 or H-204 TS 9/26 3J
- modules quantity
- accumulator code (package-voltage-capacity-connector), for example PAS-36-40-H
