H-204 ST T5

SYSTEM VERSION:

STANDARD

LIGHT SOURCE:

T5-FQ; T5-FH

TECHNICAL DATA:

Power supply:	230V AC 50Hz
Power consumption:	< 4 VA
Protection class:	I
Radio noise:	Level N
Work frequency:	25... 30kHz
Protection degree:	IP20
Lamp power and type:	FH 14W, 21W, 28W, 35W FQ 24W, 39W, 49W, 54W, 80W
Lamp filament preheating:	for FQ 49W, 54W and 80W
Accumulator type:	NiCd HT
Accumulator voltage:	4,8V or 8,4V
Accumulator capacity:	1,5Ah, 2,5Ah or 4,0Ah
Accumulator charging time:	24h
Emergency work time:	1h, 2h or 3h (for FQ 49W, 54W and 80W only 2h and 1h)
Accumulator lifespan:	4 years (suggested replacement after 4 years)
Temperature ta:	+5ºC ÷ +55ºC
Temperature tc:	+70ºC
Dimensions (LxDxH):	240 x 38 x 35 mm
Weight (without accumulator):	400g

VERSIONS:

Module name	Work mode	Time	Accumulator	Weight	Code
H-204 ST T5 14/24/39 3J	Maintained	3h	4,8V/4,0Ah	360g	6634
H-204 ST T5 14/24/39 2J	Maintained	2h	4,8V/2,5Ah	360g	6641
H-204 ST T5 14/24/39 1J	Maintained	1h	4,8V/1,5Ah	360g	6658
H-204 ST T5 21 3J	Maintained	3h	8,4V/4,0Ah	360g	6665
H-204 ST T5 21 2J	Maintained	2h	8,4V/2,5Ah	360g	6672
H-204 ST T5 21 1J	Maintained	1h	8,4V/1,5Ah	360g	6689
H-204 ST T5 28 3J	Maintained	3h	8,4V/4,0Ah	360g	6696
H-204 ST T5 28 2J	Maintained	2h	8,4V/2,5Ah	360g	6702
H-204 ST T5 28 1J	Maintained	1h	8,4V/1,5Ah	360g	6719
H-204 ST T5 35 3J	Maintained	3h	8,4V/4,0Ah	360g	6726
H-204 ST T5 35 2J	Maintained	2h	8,4V/2,5Ah	360g	6733
H-204 ST T5 35 1J	Maintained	1h	8,4V/1,5Ah	360g	6740
H-204 ST T5 49/80 2J	Maintained	2h	8,4V/4,0Ah		6825
H-204 ST T5 49/80 1J	Maintained	1h	8,4V/2,5Ah		6832

ACCUMULATOR:

Nickel-cadmium accumulators are used to supply emergency modules and they are designed to be operative in higher temperatures. Ending socked allows to connect an accumulator with a module. Standard cable length – 200mm.

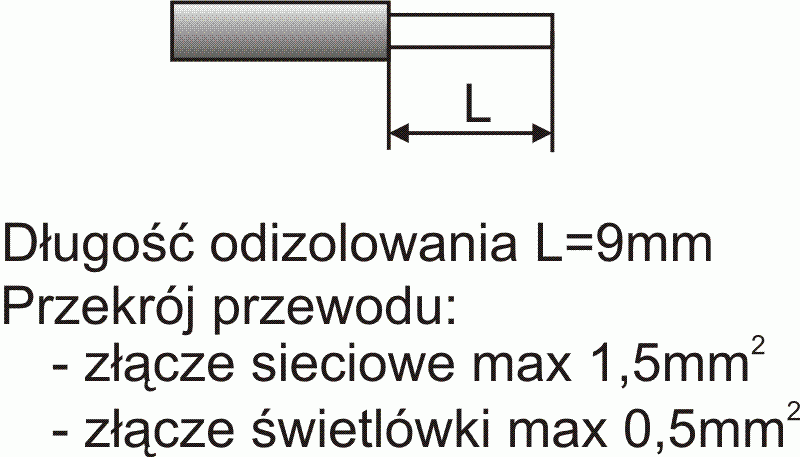

CONNECTORS:

ORDERING:

While ordering, the following shall be given:
- module code or name, for example: 6825 or H-204 ST T5 49/80 2J
- modules quantity
- accumulator code (package-voltage-capacity-connector), for example PAS-84-40-H
