Emergency Lighting Module H-204 ST L40/55 / T32/57 - Emergency lighting, emergency luminaires and emergency modules

Emergency Lighting Luminaires

Other products

Legend

Available systems:

AT - AUTOTEST, automatic test execution
TS - TESTSYSTEM, automatic test execution and remote control
ST - STANDARD, manual testing
CT - CENTRALTEST, central monitoring system
CB - CENTRAL BATTERY

Tests

Test A - monthly executed functionality test
Test B - annually executed emergency supply test (emergency work time measurement test)

Work modes:

Basic work - 230V power supply
Emergency work - accumulator power supply
Work modes switching: basic/emergency mode is switched automatically
J - maintained, works in basic and emergency mode
C - non-maintained, works only in emergency mode
MS - mixed, two lamps work in basic mode, one lamp works in emergency mode
N - night, only for Centraltest. Works like in maintained version. Basic work time can be programmed with the use of the central unit
S - special

Other functions

Blockade - emergency work blockade activated or deactivated by terminals positioning
Sleep mode - emergency work blockade for the time of power supply failure. This blockade is released automatically once the power supply is provided

Mounting

W - mounted to wall
C - mounted to ceiling

Other abbreviations

DW - two-sided

H-204 ST L40/55 / T32/57

SYSTEM VERSION:

STANDARD

LIGHT SOURCE:

TC-L 40/55W / TC-T 32/57W

TECHNICAL DATA:

Power supply:	230V AC 50Hz
Power consumption:	< 4 VA
Protection class:	I
Radio noise:	Level N
Work frequency:	25... 30kHz
Protection degree:	IP20
Lamp power and type:	4 pin fluorescent lamps TC-LEL 40W and 55W for H-204 ST L40/55 TC-TEL 32W, 42W and 57W for H-204 ST T32/57 low-power TC-L and TC-T lamps work with H-204 ST modules
Accumulator type:	NiCd HT
Accumulator voltage:	6,0V for TC-LEL 8,4V for TC-TEL
Accumulator capacity:	1,5Ah, 2,5Ah or 4,0Ah
Accumulator charging time:	24h
Emergency work time:	1h, 2h or 3h
Accumulator lifespan:	4 years (suggested replacement after 4 years)
Temperature ta:	+5ºC ÷ +55ºC
Temperature tc:	+70ºC
Dimensions (LxDxH):	240 x 38 x 35 mm
Weight (without accumulator):	360g

VERSIONS:

Module name	Work mode	Time	Accumulator	Weight	Code
H-204 ST L40/55 3J	Maintained	3h	6,0V/4,0Ah	360g	7426
H-204 ST L40/55 2J	Maintained	2h	6,0V/2,5Ah	360g	7433
H-204 ST L40/55 1J	Maintained	1h	6,0V/1,5Ah	360g	7440
H-204 ST T32/57 3J	Maintained	3h	8,4V/4,0Ah	360g	7457
H-204 ST T32/57 2J	Maintained	2h	8,4V/2,5Ah	360g	7464
H-204 ST T32/57 1J	Maintained	1h	8,4V/1,5Ah	360g	7471

ACCUMULATOR:

Nickel-cadmium accumulators are used to supply emergency modules and they are designed to be operative in higher temperatures. Ending socked allows to connect an accumulator with a module. Standard cable length – 200mm.

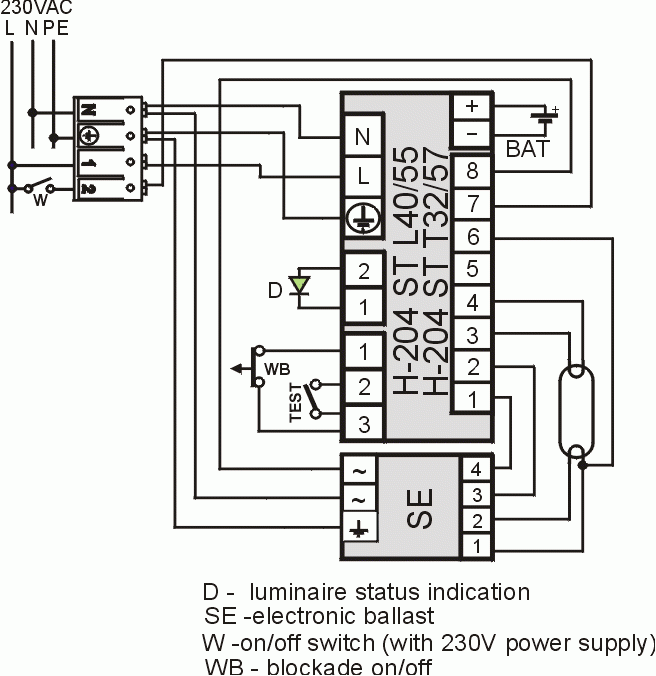

CONNECTORS:

ORDERING:

While ordering, the following shall be given:
- module code or name, for example: 7433 or H-204 ST L40/55 2J
- modules quantity
- accumulator code (package-voltage-capacity-connector), for example PAO-60-25-H
