Legend

Available systems:

AT - AUTOTEST, automatic test execution
TS - TESTSYSTEM, automatic test execution and remote control
ST - STANDARD, manual testing
CT - CENTRALTEST, central monitoring system
CB - CENTRAL BATTERY

Tests

Test A - monthly executed functionality test
Test B - annually executed emergency supply test (emergency work time measurement test)

Work modes:

Basic work - 230V power supply
Emergency work - accumulator power supply
Work modes switching: basic/emergency mode is switched automatically
J - maintained, works in basic and emergency mode
C - non-maintained, works only in emergency mode
MS - mixed, two lamps work in basic mode, one lamp works in emergency mode
N - night, only for Centraltest. Works like in maintained version. Basic work time can be programmed with the use of the central unit
S - special

Other functions

Blockade - emergency work blockade activated or deactivated by terminals positioning
Sleep mode - emergency work blockade for the time of power supply failure. This blockade is released automatically once the power supply is provided

Mounting

W - mounted to wall
C - mounted to ceiling

Other abbreviations

DW - two-sided

H-204 AT T5

SYSTEM VERSION:

AUTOTEST

LIGHT SOURCE:

T5-FQ; T5-FH

TECHNICAL DATA:

Power supply:	230V AC 50Hz
Power consumption:	< 4 VA
Protection class:	I
Radio noise:	Level N
Work frequency:	25... 30kHz
Protection degree:	IP20
Lamp power and type:	FH 14W, 21W, 28W, 35W FQ 24W, 39W, 49W, 54W, 80W
Lamp filament preheating:	FQ 49W, 54W and 80W
Accumulator type:	NiCd HT
Accumulator voltage:	4,8V or 8,4V (depending on lamp power)
Accumulator capacity:	1,5Ah, 2,5Ah or 4,0Ah
Accumulator charging time:	24h
Emergency work time:	1h, 2h or 3h (dla FQ 49W, 54W and 80W tylko 2h i 1h)
Accumulator lifespan:	4 years (suggested replacement after 4 years)
Temperature ta:	0°C ÷ +50°C
Temperature tc:	+70°C
Dimensions (LxDxH):	240 x 38 x 35 mm
Weight (without accumulator):	400g

VERSIONS:

Module name	Work mode	Time	Accumulator	Weight	Code
H-204 AT T5 14/24/39 3J	Maintained	3h	4,8V/4,0Ah	400g	8706
H-204 AT T5 14/24/39 2J	Maintained	2h	4,8V/2,5Ah	400g	8713
H-204 AT T5 14/24/39 1J	Maintained	1h	4,8V/1,5Ah	400g	8720
H-204 AT T5 21 3J	Maintained	3h	8,4V/4,0Ah	400g	8737
H-204 AT T5 21 2J	Maintained	2h	8,4V/2,5Ah	400g	8744
H-204 AT T5 21 1J	Maintained	1h	8,4V/1,5Ah	400g	8751
H-204 AT T5 28 3J	Maintained	3h	8,4V/4,0Ah	400g	6962
H-204 AT T5 28 2J	Maintained	2h	8,4V/2,5Ah	400g	6979
H-204 AT T5 28 1J	Maintained	1h	8,4V/1,5Ah	400g	6986
H-204 AT T5 35 3J	Maintained	3h	8,4V/4,0Ah	400g	6993
H-204 AT T5 35 2J	Maintained	2h	8,4V/2,5Ah	400g	7006
H-204 AT T5 35 1J	Maintained	1h	8,4V/1,5Ah	400g	7013
H-204 AT T5 49/80 2J	Maintained	2h	8,4V/4,0Ah	380g	7068
H-204 AT T5 49/80 1J	Maintained	1h	8,4V/2,5Ah	380g	7075

ACCUMULATOR:

Nickel-cadmium accumulators are used to supply emergency modules and they are designed to be operative in higher temperatures. Ending socked allows to connect an accumulator with a module. Standard cable length – 200mm.

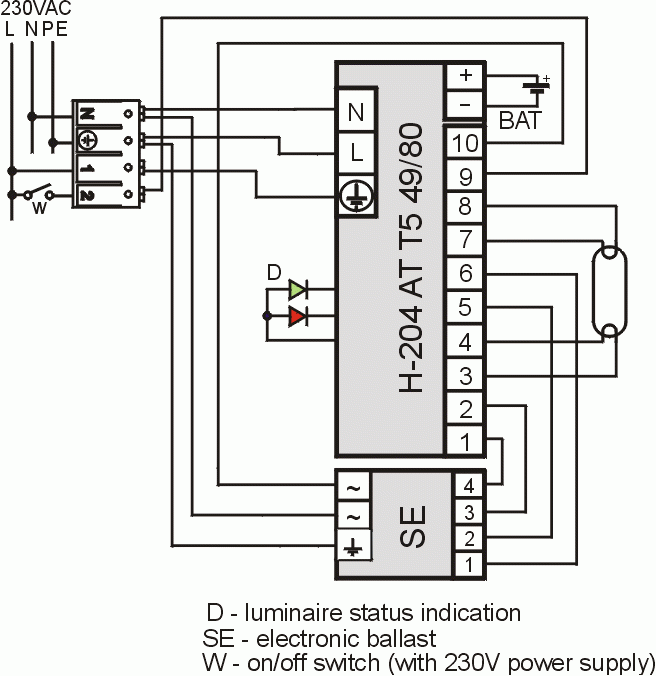

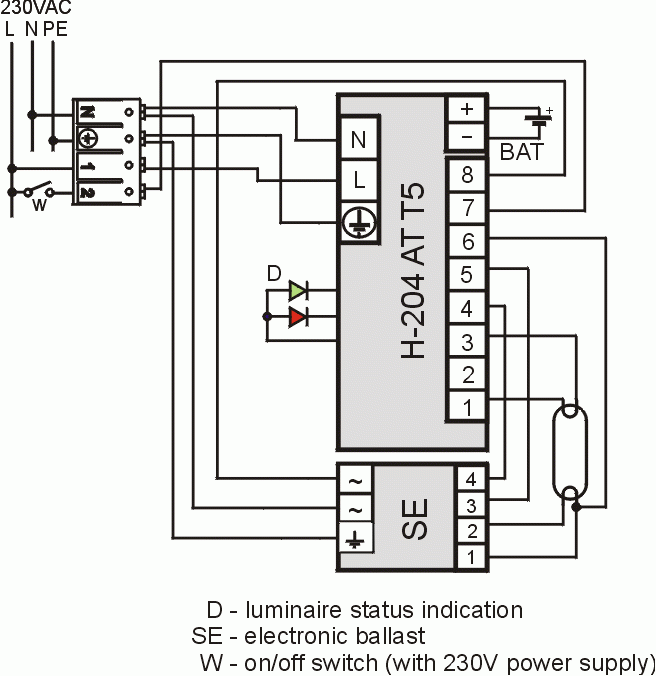

CONNECTORS:

ORDERING:

While ordering, the following shall be given:
- module code or name, for example: 8737 or H-204 AT T5 21 3J
- modules quantity
- accumulator code (package-voltage-capacity-connector), for example PAR-36-40-H
