Legend
Available systems:
AT - AUTOTEST, automatic test execution
TS - TESTSYSTEM, automatic test execution and remote control
ST - STANDARD, manual testing
CT - CENTRALTEST, central monitoring system
CB - CENTRAL BATTERY
TS - TESTSYSTEM, automatic test execution and remote control
ST - STANDARD, manual testing
CT - CENTRALTEST, central monitoring system
CB - CENTRAL BATTERY
Tests
Test A - monthly executed functionality test
Test B - annually executed emergency supply test (emergency work time measurement test)
Test B - annually executed emergency supply test (emergency work time measurement test)
Work modes:
Basic work - 230V power supply
Emergency work - accumulator power supply
Work modes switching: basic/emergency mode is switched automatically
J - maintained, works in basic and emergency mode
C - non-maintained, works only in emergency mode
MS - mixed, two lamps work in basic mode, one lamp works in emergency mode
N - night, only for Centraltest. Works like in maintained version. Basic work time can be programmed with the use of the central unit
S - special
Emergency work - accumulator power supply
Work modes switching: basic/emergency mode is switched automatically
J - maintained, works in basic and emergency mode
C - non-maintained, works only in emergency mode
MS - mixed, two lamps work in basic mode, one lamp works in emergency mode
N - night, only for Centraltest. Works like in maintained version. Basic work time can be programmed with the use of the central unit
S - special
Other functions
Blockade - emergency work blockade activated or deactivated by terminals positioning
Sleep mode - emergency work blockade for the time of power supply failure. This blockade is released automatically once the power supply is provided
Sleep mode - emergency work blockade for the time of power supply failure. This blockade is released automatically once the power supply is provided
Mounting
W - mounted to wall
C - mounted to ceiling
C - mounted to ceiling
Other abbreviations
DW - two-sided
TELESTO STANDARD
CASING:
| Body material: | PC (polycarbonate) |
|---|---|
| Casing colour: | White |
| Shape: | Oval |
| Lamp cover colour: | Opal Semi-transparent |
TECHNICAL DATA:
| Power supply: | 230V AC/50Hz |
|---|---|
| Protection class: | I |
| Radio noise: | Level N |
| Protection degree: | IP65 |
| Recharging time: | 24h |
| Emergency work time: | 1h, 2h or 3h |
| Light sources: | TC-DD 28W lamp in one-lamp luminaire version TC-SEL 11W lamp in two-lamps luminaire version |
| Accumulator type: | NiCd HT albo NiMH |
| Accumulator lifespan: | 4 years (suggested replacement after 4 years) |
| Ambient temperature: | 0°C÷50°C |
| Protection: | Luminaire module termination after lamp failure |
| Emergency efficiency: | 35% for 11W 20% for 28W |
| Connection block: | 4x2,5mm2 |
| Blockade: | Yes |
VERSIONS:
| Luminaire name | Work mode | Time | Accumulator | Weight | Code |
|---|---|---|---|---|---|
| TELESTO ST 3C | Non-maintained | 3h | 8,4V/4Ah NiMH | 8096 | |
| TELESTO ST 2C | Non-maintained | 2h | 8,4V/2,5Ah | 8089 | |
| TELESTO ST 1C | Non-maintained | 1h | 8,4V/4,0Ah | 8072 | |
| TELESTO ST 3M | Mieszana | 3h | 3,6V/4,0Ah | 8065 | |
| TELESTO ST 2M | Mieszana | 2h | 3,6V/2,5Ah | 8058 | |
| TELESTO ST 1M | Mieszana | 1h | 3,6V/1,5Ah | 8041 | |
| TELESTO ST 3J | Maintained | 3h | 3,6V/4,0Ah | 8034 | |
| TELESTO ST 2J | Maintained | 2h | 3,6V/2,5Ah | 8027 | |
| TELESTO ST 1J | Maintained | 1h | 3,6V/1,5Ah | 8010 |
MOUNTING TYPES:
C23
W14
ORDERING:
While ordering, the following shall be given:- product code or luminaire name with pictogram code and mounting type, for example: 8096 W14 lub TELESTO ST 3C W14
- luminares quantity

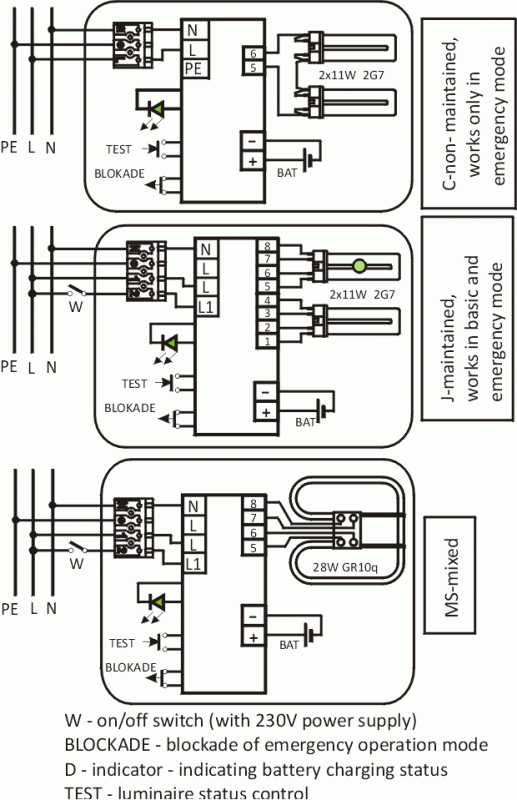

CIRCUIT DIAGRAMS:
DIMENSIONS:
