SPARK AUTOTEST
CASING:
| Body material: | Aluminium |
|---|---|
| Casing colour: | Black |
| Lamp cover material: | Plexiglas |
| Shape: | Plexiglas with pictogram |
| Lamp cover colour: | Frosted |
TECHNICAL DATA:
| Power supply: | 230V AC/50Hz |
|---|---|
| Power consumption: | <4W for LED |
| Protection class: | I |
| Radio noise: | Level N |
| Protection degree: | IP40 |
| Recharging time: | 24h |
| Emergency work time: | > 3h |
| Light source: | LED |
| Light source power: | 1 W |
| Light source durability: | > 50 000 h |
| Emergency work flux: | 100% |
| Accumulator type: | NiCd HT 4,8 V/1Ah |
| Accumulator lifespan: | 4 years (suggested replacement after 4 years) |
| Ambient temperature: | +5°C÷+55°C |
| Connection block: | 3x1,5mm2 or 4x1,5mm2 |
VERSIONS:
| Luminaire name | Work mode | Time | Accumulator | Weight | Code |
|---|---|---|---|---|---|
| SPARK AT J LED | Maintained | 2h | 4715 | ||
| SPARK DW AT J LED | Maintained | 1h | 4722 | ||
| SPARK D AT J LED | Maintained | 3h | 4739 | ||
| SPARK D DW AT J LED | Maintained | 2h | 4746 | ||
| SPARK AT C LED | Non-maintained | 2h | 7969 | ||
| SPARK DW AT C LED | Non-maintained | 1h | 7976 | ||
| SPARK D AT C LED | Non-maintained | 3h | 7983 | ||
| SPARK D DW AT C LED | Non-maintained | 2h | 7990 |
PICTOGRAMS:
P01
P02
P03
P04
P05
P06
P07
P08
P09
P10
P11
P12
P13
P14
P15
P16
P17
P18
P19
P20
P21
P22
P23
P24
P25
P26
P27
MOUNTING TYPES:
W1
ORDERING:
While ordering, the following shall be given:- product code or luminaire name with pictogram code and mounting type, for example: 4715 P01 C or SPARK AT J LED P01 W1
- luminares quantity

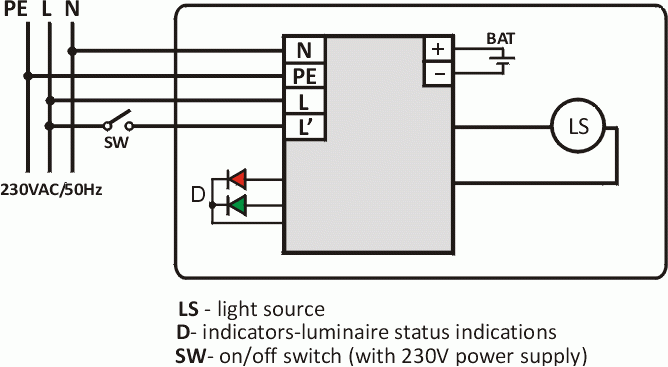

CIRCUIT DIAGRAMS:

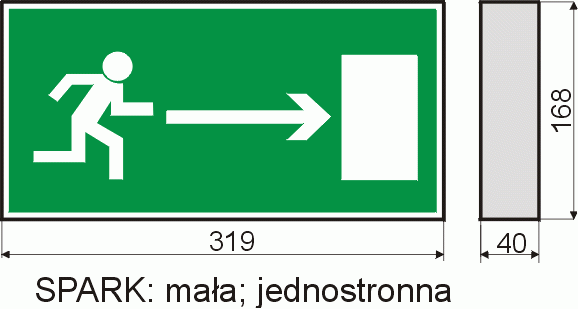

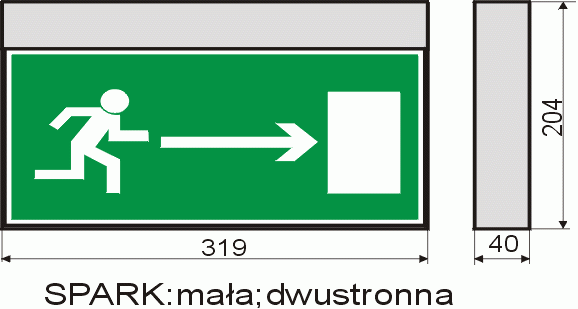

DIMENSIONS:
