- PROFILIGHT AUTOTEST
- PROFILIGHT CENTRALTEST
Legend
Available systems:
AT - AUTOTEST, automatic test execution
TS - TESTSYSTEM, automatic test execution and remote control
ST - STANDARD, manual testing
CT - CENTRALTEST, central monitoring system
CB - CENTRAL BATTERY
TS - TESTSYSTEM, automatic test execution and remote control
ST - STANDARD, manual testing
CT - CENTRALTEST, central monitoring system
CB - CENTRAL BATTERY
Tests
Test A - monthly executed functionality test
Test B - annually executed emergency supply test (emergency work time measurement test)
Test B - annually executed emergency supply test (emergency work time measurement test)
Work modes:
Basic work - 230V power supply
Emergency work - accumulator power supply
Work modes switching: basic/emergency mode is switched automatically
J - maintained, works in basic and emergency mode
C - non-maintained, works only in emergency mode
MS - mixed, two lamps work in basic mode, one lamp works in emergency mode
N - night, only for Centraltest. Works like in maintained version. Basic work time can be programmed with the use of the central unit
S - special
Emergency work - accumulator power supply
Work modes switching: basic/emergency mode is switched automatically
J - maintained, works in basic and emergency mode
C - non-maintained, works only in emergency mode
MS - mixed, two lamps work in basic mode, one lamp works in emergency mode
N - night, only for Centraltest. Works like in maintained version. Basic work time can be programmed with the use of the central unit
S - special
Other functions
Blockade - emergency work blockade activated or deactivated by terminals positioning
Sleep mode - emergency work blockade for the time of power supply failure. This blockade is released automatically once the power supply is provided
Sleep mode - emergency work blockade for the time of power supply failure. This blockade is released automatically once the power supply is provided
Mounting
W - mounted to wall
C - mounted to ceiling
C - mounted to ceiling
Other abbreviations
DW - two-sided

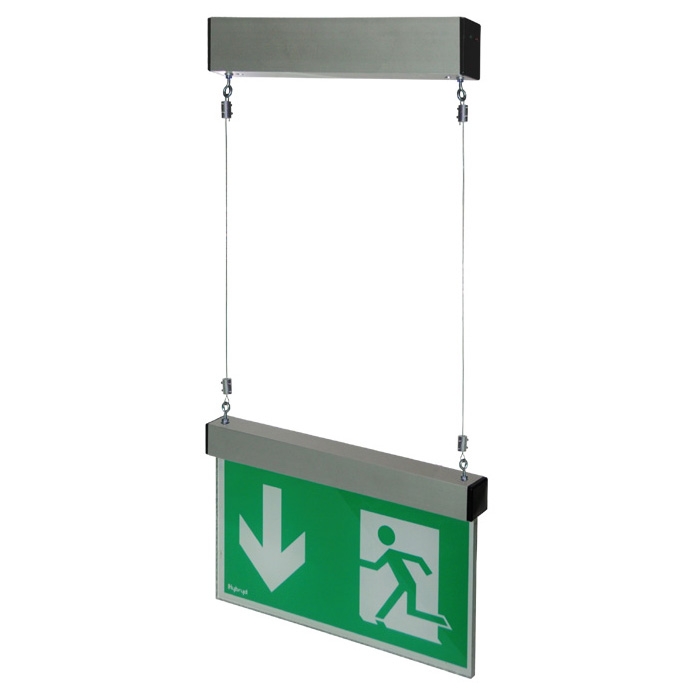

PROFILIGHT CENTRALTEST
CASING:
| Body material: | Aluminium |
|---|---|
| Casing colour: | black, silver (oxidized aluminium) other colours available (RAL needed) |
| Lamp cover material: | Plexiglas |
| Shape: | Plexiglas with pictogram |
TECHNICAL DATA:
| Power supply: | 230V AC/50Hz |
|---|---|
| Power consumption: | <4W |
| Protection class: | I |
| Radio noise: | Level N |
| Protection degree: | IP40 |
| Recharging time: | 24h |
| Emergency work time: | > 3h |
| Light source: | White LED |
| Light source durability: | > 50 000 h |
| Accumulator type: | NiCd HT 4,8V/1 Ah |
| Accumulator lifespan: | 4 years |
| Communication line: | Two shielded wires |
| Ambient temperature: | 5°C÷55°C |
| Connection block: | 3x1,5mm2 |
| Blockade: | Yes |
VERSIONS:
| Luminaire name | Work mode | Time | Accumulator | Weight | Code |
|---|---|---|---|---|---|
| PROFILIGHT CT J LED | Maintained | 3h | 4,8V/1,0Ah | 9284 | |
| PROFILIGHT CT C LED | Non-maintained | 3h | 4,8V/1,0Ah | 9291 |
PICTOGRAMS:
P01
P02
P03
P04
P05
P06
P07
P08
P09
P10
P11
P12
P13
P14
P15
P16
P17
P18
P19
P20
P21
P22
P23
P24
P25
P26
P27
MOUNTING TYPES:
W15
C24
C26
ORDERING:
While ordering, the following shall be given:- product code or luminaire name with pictogram code and mounting type, for example: 9284 P19 W15 or PROFILIGHT CT J P19 W15
- luminares quantity

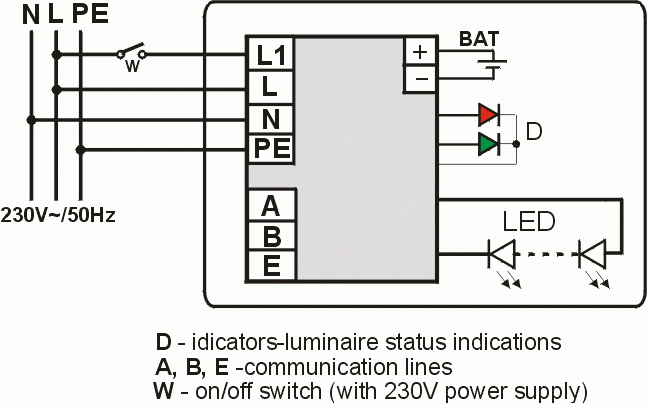

CIRCUIT DIAGRAMS:

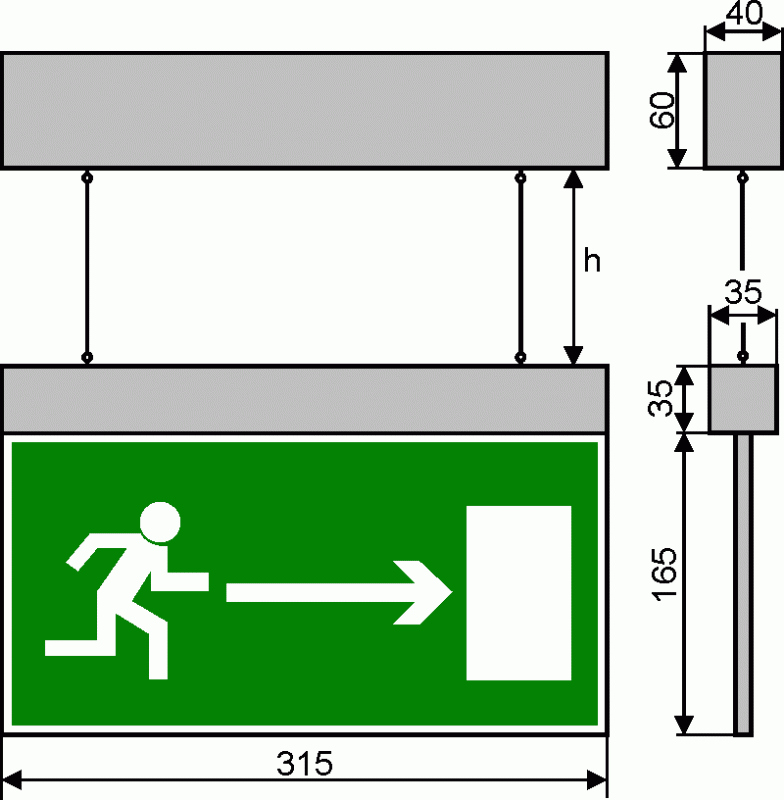

DIMENSIONS:
