OCZKO LED
CASING:
| Body material: | Aluminium |
|---|---|
| Casing colour: | white, silver |
| Lamp cover material: | Plexiglas |
| Lamp cover shape: | Flat Oval |
| Lamp cover colour: | Transparent |
CHARACTERISTICS:

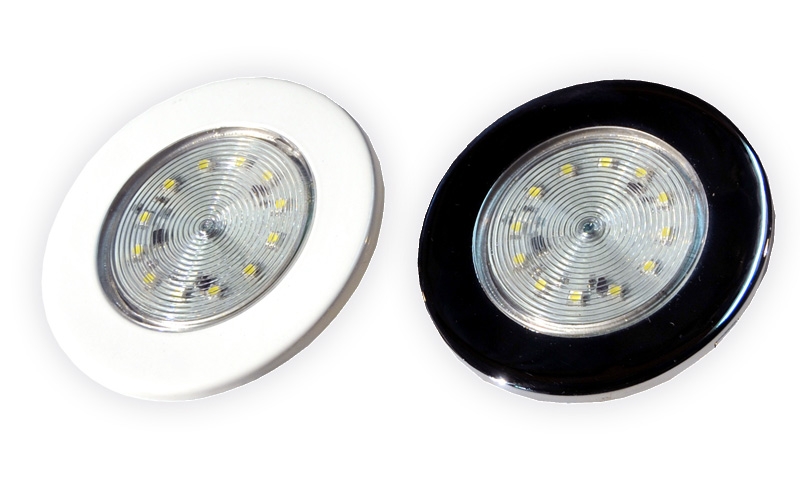

Oczko LED is a luminaire designed for emergency lighting.Its main task is to illuminate emergency escape routes,emergency escape exits and rooms in public facilities,work places,etc.Oczko LED has LED light source and it is supplied by H-290 CT LED Feeder.Suspended ceiling mounting is available.
TECHNICAL DATA:
| Power supply: | 15 VDC |
|---|---|
| Current consumption: | 0,1 A |
| Power consumption: | <1,5W |
| Protection class: | I |
| Radio noise: | Level N |
| Protection degree: | IP20 |
| Light source: | LED |
| Light source power: | 1W |
| Light source durability: | >50 000h |
| Ambient temperature: | 0°C ÷ +50°C |
| Connection block: | 2 x 1,5mm2 |
| Weight: | 80g |
ORDERING:
While ordering, the following shall be given:- Oczko LED
- luminares quantity
CIRCUIT DIAGRAMS:
DIMENSIONS:
