- HYPERION AUTOTEST
- HYPERION TESTSYSTEM
- HYPERION CENTRAL BATTERY
- HYPERION STANDARD
Legend
Available systems:
AT - AUTOTEST, automatic test execution
TS - TESTSYSTEM, automatic test execution and remote control
ST - STANDARD, manual testing
CT - CENTRALTEST, central monitoring system
CB - CENTRAL BATTERY
TS - TESTSYSTEM, automatic test execution and remote control
ST - STANDARD, manual testing
CT - CENTRALTEST, central monitoring system
CB - CENTRAL BATTERY
Tests
Test A - monthly executed functionality test
Test B - annually executed emergency supply test (emergency work time measurement test)
Test B - annually executed emergency supply test (emergency work time measurement test)
Work modes:
Basic work - 230V power supply
Emergency work - accumulator power supply
Work modes switching: basic/emergency mode is switched automatically
J - maintained, works in basic and emergency mode
C - non-maintained, works only in emergency mode
MS - mixed, two lamps work in basic mode, one lamp works in emergency mode
N - night, only for Centraltest. Works like in maintained version. Basic work time can be programmed with the use of the central unit
S - special
Emergency work - accumulator power supply
Work modes switching: basic/emergency mode is switched automatically
J - maintained, works in basic and emergency mode
C - non-maintained, works only in emergency mode
MS - mixed, two lamps work in basic mode, one lamp works in emergency mode
N - night, only for Centraltest. Works like in maintained version. Basic work time can be programmed with the use of the central unit
S - special
Other functions
Blockade - emergency work blockade activated or deactivated by terminals positioning
Sleep mode - emergency work blockade for the time of power supply failure. This blockade is released automatically once the power supply is provided
Sleep mode - emergency work blockade for the time of power supply failure. This blockade is released automatically once the power supply is provided
Mounting
W - mounted to wall
C - mounted to ceiling
C - mounted to ceiling
Other abbreviations
DW - two-sided

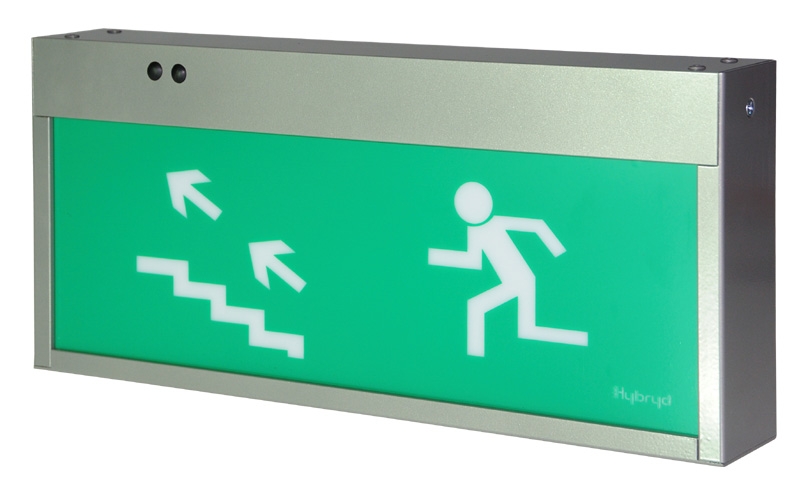

HYPERION CENTRAL BATTERY
CASING:
| Body material: | Aluminium |
|---|---|
| Casing colour: | Grey – RAL 9006, other colours available |
| Lamp cover material: | Plexiglas |
| Shape: | Plexiglas with pictogram |
| Lamp cover colour: | Frosted |
TECHNICAL DATA:
| Power supply: | 230V AC/50Hz or 216VDC |
|---|---|
| Power consumption: | <12W for TL8W or <4W for HYPERION LED CB |
| Protection class: | I |
| Radio noise: | Level N |
| Protection degree: | IP40 |
| Light source fluorescent lamp: | TL8W- G5 or White LED 1W |
| Ambient temperature: | 0°C÷50°C |
| Connection block: | 3x2,5mm2 or 4x2,5mm2 |
VERSIONS:
| Luminaire name | Work mode | Time | Accumulator | Weight | Code |
|---|---|---|---|---|---|
| HYPERION CB | h | 8317 | |||
| HYPERION CB LED | h | 0724 | |||
| HYPERION DW CB | h | 0731 | |||
| HYPERION DW CB LED | h | 0748 | |||
| HYPERION D CB | h | 6337 | |||
| HYPERION D CB LED | h | 6344 | |||
| HYPERION D DW CB | h | 6351 | |||
| HYPERION D DW CB LED | h | 6368 |
PICTOGRAMS:
P01
P02
P03
P04
P05
P06
P07
P08
P09
P10
P11
P12
P13
P14
P15
P16
P17
P18
P19
P20
P21
P22
P23
P24
P25
P26
P27
MOUNTING TYPES:
C8
C9
C10(DW)
C11(DW)
W5
ORDERING:
While ordering, the following shall be given:- product code or luminaire name with pictogram code and mounting type, for example: 8317 P19 W5 or HYPERION CB P19 W5
- luminares quantity

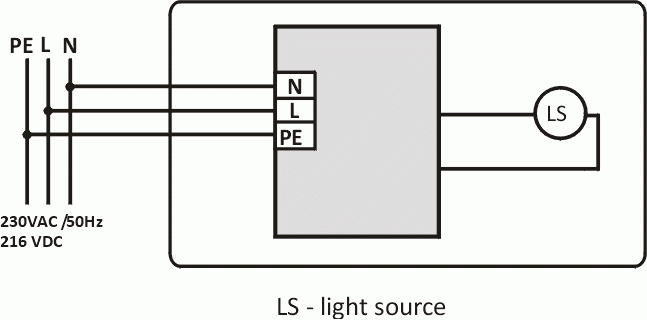

CIRCUIT DIAGRAMS:

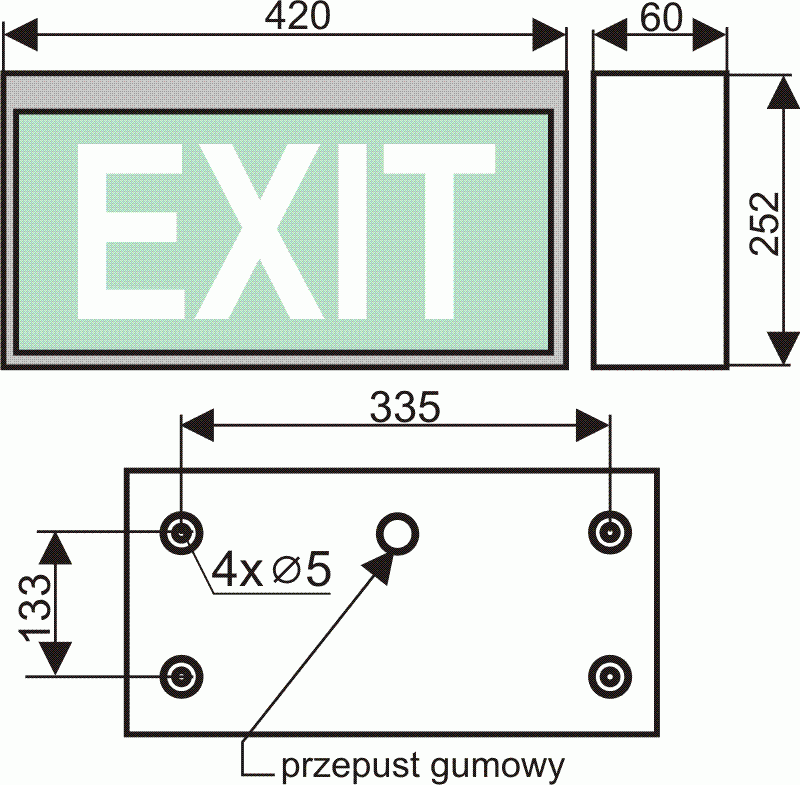

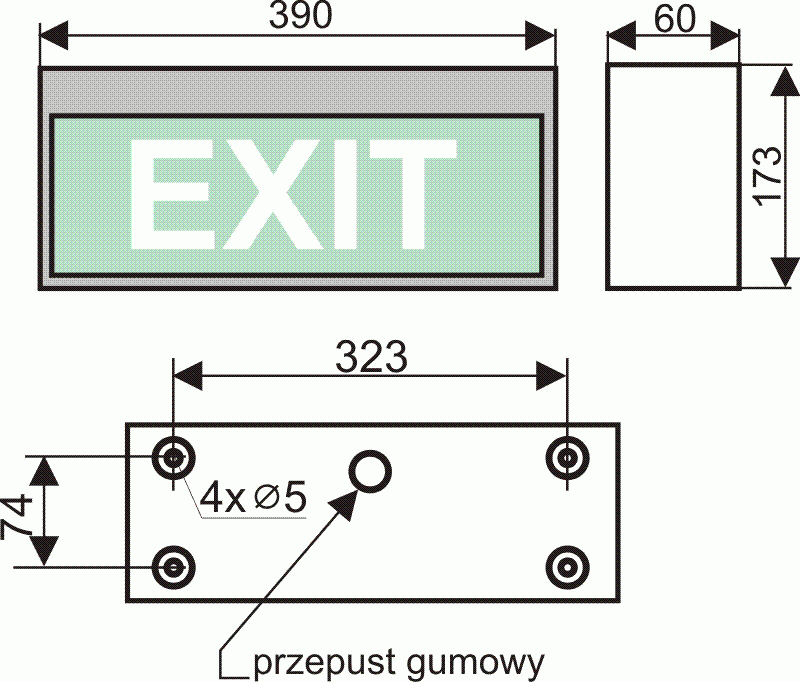

DIMENSIONS:
