Legend
Available systems:
AT - AUTOTEST, automatic test execution
TS - TESTSYSTEM, automatic test execution and remote control
ST - STANDARD, manual testing
CT - CENTRALTEST, central monitoring system
CB - CENTRAL BATTERY
TS - TESTSYSTEM, automatic test execution and remote control
ST - STANDARD, manual testing
CT - CENTRALTEST, central monitoring system
CB - CENTRAL BATTERY
Tests
Test A - monthly executed functionality test
Test B - annually executed emergency supply test (emergency work time measurement test)
Test B - annually executed emergency supply test (emergency work time measurement test)
Work modes:
Basic work - 230V power supply
Emergency work - accumulator power supply
Work modes switching: basic/emergency mode is switched automatically
J - maintained, works in basic and emergency mode
C - non-maintained, works only in emergency mode
MS - mixed, two lamps work in basic mode, one lamp works in emergency mode
N - night, only for Centraltest. Works like in maintained version. Basic work time can be programmed with the use of the central unit
S - special
Emergency work - accumulator power supply
Work modes switching: basic/emergency mode is switched automatically
J - maintained, works in basic and emergency mode
C - non-maintained, works only in emergency mode
MS - mixed, two lamps work in basic mode, one lamp works in emergency mode
N - night, only for Centraltest. Works like in maintained version. Basic work time can be programmed with the use of the central unit
S - special
Other functions
Blockade - emergency work blockade activated or deactivated by terminals positioning
Sleep mode - emergency work blockade for the time of power supply failure. This blockade is released automatically once the power supply is provided
Sleep mode - emergency work blockade for the time of power supply failure. This blockade is released automatically once the power supply is provided
Mounting
W - mounted to wall
C - mounted to ceiling
C - mounted to ceiling
Other abbreviations
DW - two-sided
CRYSTAL CENTRALTEST
CASING:
| Body material: | Steel plate |
|---|---|
| Casing colour: | White – RAL 9003, other colours available |
| Lamp cover material: | Plexiglas |
| Shape: | Plexiglas with pictogram |
| Lamp cover colour: | Transparent |
TECHNICAL DATA:
| Power supply: | 230V AC/50Hz |
|---|---|
| Power consumption: | <12W for fluorescent lamp, <4W for LED |
| Protection class: | I |
| Radio noise: | Level N |
| Protection degree: | IP20 |
| Recharging time: | 24h |
| Emergency work time: | 1h, 2h or 3h |
| Light source: | TL8W- G5 lamp or White LED 1W |
| Accumulator type: | NiCd HT |
| Accumulator lifespan: | 4 years (suggested replacement after 4 years) |
| Ambient temperature: | 0°C÷50°C |
| Connection block: | 3x1,5mm2 or 4x1,5mm2 |
| Gap size in suspended ceiling: | 80x350mm |
| Central unit steering: | Yes |
VERSIONS:
| Luminaire name | Work mode | Time | Accumulator | Weight | Code |
|---|---|---|---|---|---|
| CRYSTAL CT 3J | Maintained | 3h | 3,6V/4,0Ah | 960 | |
| CRYSTAL CT 2J | Maintained | 2h | 3,6V/2,5Ah | 977 | |
| CRYSTAL CT 1J | Maintained | 1h | 3,6V/1,5Ah | 984 | |
| CRYSTAL CT 3C | Non-maintained | 3h | 3,6V/4,0Ah | 991 | |
| CRYSTAL CT 2C | Non-maintained | 2h | 3,6V/2,5Ah | 1004 | |
| CRYSTAL CT 1C | Non-maintained | 1h | 3,6V/1,5Ah | 1011 | |
| CRYSTAL CT J LED | Maintained | 3h | 4,8V/1,0Ah | 5415 | |
| CRYSTAL CT C LED | Non-maintained | 3h | 4,8V/1,0Ah | 5446 |
PICTOGRAMS:
P01
P02
P03
P04
P05
P06
P07
P08
P09
P10
P11
P12
P13
P14
P15
P16
P17
P18
P19
P20
P21
P22
P23
P24
P25
P26
P27
MOUNTING TYPES:
C5
C6
C7
W3
W4
ORDERING:
While ordering, the following shall be given:- product code or luminaire name with pictogram code and mounting type, for example: 0960 P19 C5 or CRYSTA CT 3J P19 C5
- luminares quantity

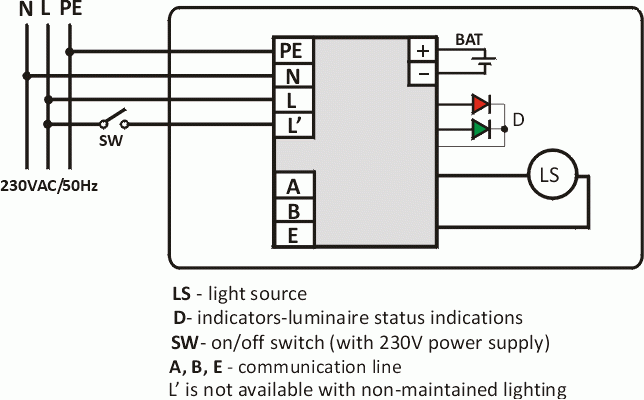

CIRCUIT DIAGRAMS:

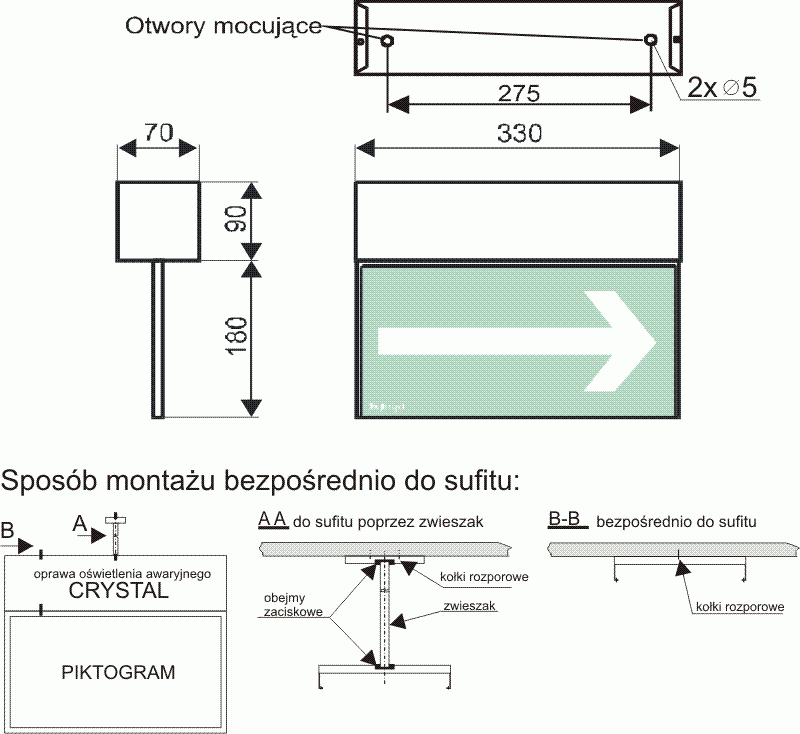

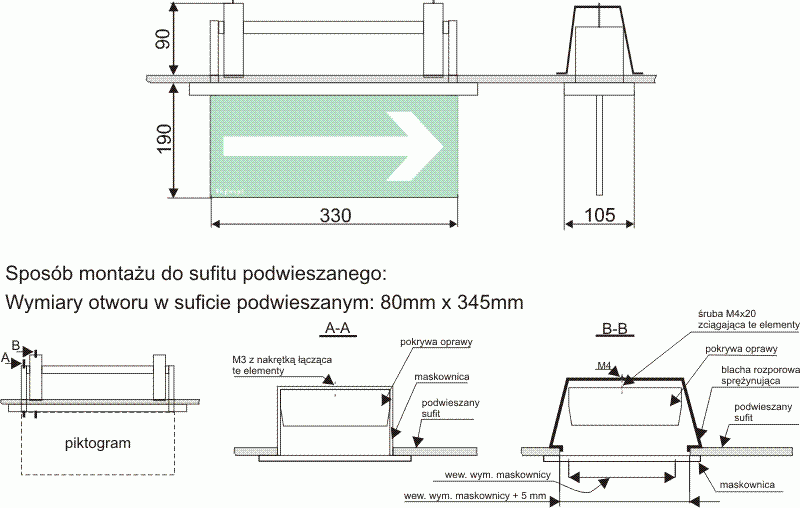

DIMENSIONS:
