Legend

Available systems:

AT - AUTOTEST, automatic test execution
TS - TESTSYSTEM, automatic test execution and remote control
ST - STANDARD, manual testing
CT - CENTRALTEST, central monitoring system
CB - CENTRAL BATTERY

Tests

Test A - monthly executed functionality test
Test B - annually executed emergency supply test (emergency work time measurement test)

Work modes:

Basic work - 230V power supply
Emergency work - accumulator power supply
Work modes switching: basic/emergency mode is switched automatically
J - maintained, works in basic and emergency mode
C - non-maintained, works only in emergency mode
MS - mixed, two lamps work in basic mode, one lamp works in emergency mode
N - night, only for Centraltest. Works like in maintained version. Basic work time can be programmed with the use of the central unit
S - special

Other functions

Blockade - emergency work blockade activated or deactivated by terminals positioning
Sleep mode - emergency work blockade for the time of power supply failure. This blockade is released automatically once the power supply is provided

Mounting

W - mounted to wall
C - mounted to ceiling

Other abbreviations

DW - two-sided

CRYSTAL CENTRAL BATTERY


CASING:

Body material: Steel plate
Casing colour: White – RAL 9003, other colours available
Lamp cover material: Plexiglas
Shape: Plexiglas with pictogram
Lamp cover colour: Transparent

TECHNICAL DATA:

Power supply: 230V AC/50Hz or
216VDC
Power consumption: <12W for TL8W or
< 4W for CRYSTAL LED
Protection class: I
Radio noise: Level N
Protection degree: IP20
Light source: TL8W- G5 lamp or
LED 1W
Ambient temperature: 0°C÷50°C
Connection block: 3x1,5mm2 or 4x1,5mm2
Gap size in suspended ceiling: 80x350mm

VERSIONS:

Luminaire nameWork modeTimeAccumulatorWeightCode
CRYSTAL CBhCentralna bateria6184
CRYSTAL CB LEDhCentralna bateria5668

PICTOGRAMS:

Pictogram P01
P01
Pictogram P02
P02
Pictogram P03
P03
Pictogram P04
P04
Pictogram P05
P05
Pictogram P06
P06
Pictogram P07
P07
Pictogram P08
P08
Pictogram P09
P09
Pictogram P10
P10
Pictogram P11
P11
Pictogram P12
P12
Pictogram P13
P13
Pictogram P14
P14
Pictogram P15
P15
Pictogram P16
P16
Pictogram P17
P17
Pictogram P18
P18
Pictogram P19
P19
Pictogram P20
P20
Pictogram P21
P21
Pictogram P22
P22
Pictogram P23
P23
Pictogram P24
P24
Pictogram P25
P25
Pictogram P26
P26
Pictogram P27
P27

MOUNTING TYPES:

Mounting type C5
C5
Mounting type C6
C6
Mounting type C7
C7
Mounting type W3
W3
Mounting type W4
W4

ORDERING:

While ordering, the following shall be given:
- product code or luminaire name with pictogram code and mounting type, for example: 6184 P19 C5 or CRYSTAL CB P19 C5
- luminares quantity

CIRCUIT DIAGRAMS:

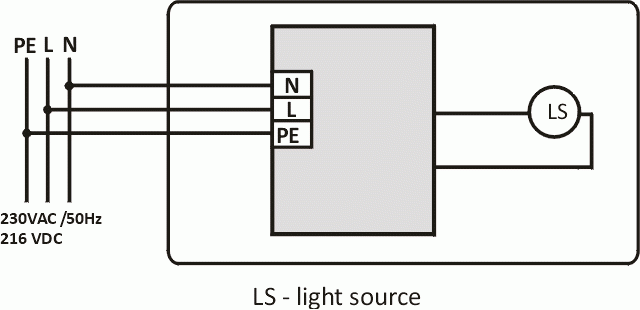

Circuit diagram CRYSTAL CENTRAL BATTERY

DIMENSIONS:

Casing CRYSTAL CENTRAL BATTERY Casing CRYSTAL CENTRAL BATTERY
